Hangzhou Ocean Industry Co., Ltd. ir viens no vadošajiem gatavo urbuma ķēdes ratu ražotājiem un piegādātājiem Ķīnā. Laipni lūdzam vairumtirdzniecībā no mūsu rūpnīcas vairumtirdzniecības izturīgām rūpnieciskajām ķēdēm un jaudas pārvades daļām, kas ražotas Ķīnā. Visi pielāgotie produkti ir ar augstu kvalitāti un konkurētspējīgu cenu.



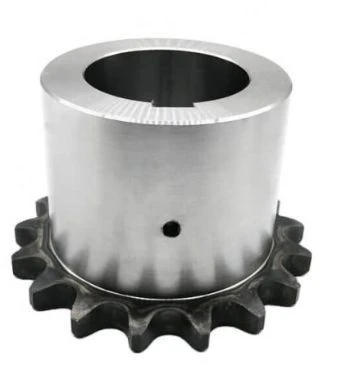

Finished Bore Sprockets ir rullīšu ķēdes zobrats ar precīzi apstrādātiem caurumiem, standarta atslēgu izgriezumiem un divām regulēšanas skrūvēm. Šos ķēdes ratus parasti dēvē par "tipu B" vai "tipu BS", ar atslēgu un divām regulēšanas skrūvēm vienā galā, no kurām viena atrodas virs atslēgas rievas, bet otra - 90 grādu leņķī pret atslēgu.

Tie ir izgatavoti no augstas kvalitātes-oglekļa tērauda, ​​un zobiem ir veikta sacietēšanas apstrāde. Šāda veida ķēdes rati tiek plaši izmantoti dažādās rūpniecības jomās, piemēram, konveijera sistēmās un mehāniskās transmisijas sistēmās mehāniskās jaudas pārvadīšanai starp rotējošām vārpstām.



Parametrs



Preču klāsts

Standarti Sērijas veids Izmēru diapazons
DIN 06B, solis 9,525 mm 10-30
08B, solis 12,70 mm 10-30
10B, solis 15,875 mm 10-25
12B, solis 19,05 mm 10-25
16B, solis 25,40 mm 11-25
20B, Solis 31,75 mm 9-20
ANSI 35-1 3/8" piķim FB35B09H-FB35B72
40-1 3/8" piķim FB40B09H-FB40B96
41-1 3/8" piķim FB41B09-FB41B60
50-1 5/8" piķim FB50B09H-FB50B96
60-1 3/4" piķim FB60B09H-FB60B96
80-1 1" piķim FB80B09H-FB80B60
100-1 par1 1/4" piķi FB100B08H-FB100B25H

product-1266-446

1Sheet11





2Sheet12



DIN

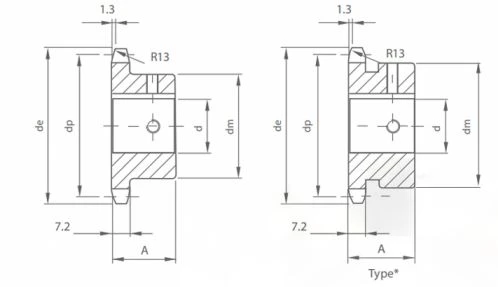

Pabeigtie zobrati 06B

Ruļļu ķēdei DIN 8187-ISO/R 606 3/8''×7/32''

SOĻI-9,525 MM RULIS- ∅6,35

06B

Z de dp d h dm   Z de dp d h dm   Z de dp d h dm
10 34.5 30.82 10^ 20 24*   17 55.5 51.83 12 28 40   22 70.6 66.93 15 28 50
11*   14   16
12 26*   15   18
14 29*   16   19
11 37.5 33.80 10^ 25 24*   18   20
12 26*   19   22
14 29*   20   24
15 30*   22   25
16 3   24 46*   23 73.7 69.95 15 28 52
12 405 36.80 10^ 25 25   25   16
12 26*   18 58.6 54.85 12 28 40   18
14 29*   14   19
15 30*   15 43   20
16 31*   16   22
13 43.5 39.80 10^ 25 28   18   24
12   19   25
14   20   24 76.7 72.97 16 28 50
15   22   18
16 31*   24   19 54
18 34*   25   20
14 46.5 42.80 10^ 25 31   19 61.6 57.87 12 28 40   22
12   14   24
14   15 45   25
15   16   28
16   18   30
18   19   25 79.7 76.00 16 28 50
19 35*   20   18
15 49.5 45.81 12 25 34   22   19
14   24   20 57
15   25   22
16   20 64.6 60.89 12 28 40   24
18   14   25
19   15 46   28
20   16   30
22 42*   18   30 94.8 91.12 20 30 60
24   19   22
25   20   24
16 52.5 48.82 12 28 37   22   25
14   24   28
15   25   30
16   21 67.6 63.91 15 28 48
18   16
19   18
20   19
22   20
24 42*   22
25   24
              25



Pabeigtie zobrati 08B

Ruļļu ķēdei DIN 8187-ISO/R 606 1/2''×5/16''

SOĻI-12,70 MM RULIS- ∅8,51

08B

z de dp d A dm   z de dp d A dm   Z de dp d A dm   z de dp d A dm
10 45.9 41.10 12 25 26   15 65.9 51.09 18 28 45   19 82.0 77.16 16 28 52   22 94.1 89.24 20 28 65
14   19   18   22
15 31*   20   19   24
25		 70
16   22   20 60   28
11 49.9 45.07 12 25 29   24   22   30
14   25   24   32
16/15 31*   28   25   35
38
18 37*   30 52*   28   23 98.1 93.27 19 28 65
19   32   30   20
12 53.9 49.07 12 28 33   16 69.9 55.10 15 28


50


57*		   32   22 70
14/15   16   35   24
16   18   38   25
18   19   20 86.0 81.19 16 28 55   28
19   20   18   30
20   22   19   32
35
22   40*   24   20 64   38
24   41*   25   22   24 102.1 97.29 19 28 65
25 42*   28   24   20
13 57.9 53.06 12 28 37   30   25   22 70
14   32   28   24
15   17 74.0 69.11 15 28 52   30   25
16   16   32   28
18   18   35   30
32
19   19   38   35
20   20   21 90.1 85.22 16 28 55   38
22   22   18   25 106.2 101.33 19 28 65
24 42*   24   19   20
25 42*   25   20 60   22 70
28 45*   28   22   24
14 61.9 57.07 12 28 33   30   24 68   25
14   32   25   28
15 41   18 78.0 73.14 16


28



28		 52   28   30
16   18   30   32
18   19   32   35
19   20 56




56		   35   38
20   22   38   30 126.3 121.50 25 28 75
22   24   22 94.1 89.24 16 28 55   28
24   25   18   30 80
25   28   19   32
28 48*   30                 35
15 65.9 61.09 12 28 33
45		   32
35
38		                 38
14
15
16



Apdarītie zobrati 10B

Ruļļu ķēdei DIN 8187-ISO/R 606 5/8''×3/8''

SOĻI-15,875 MM RULIS- ∅10,16

10B

z de dp d A dm   z de dp d A dm   z de dp d A dm   z de dp d A dm
10 58.3 51.37 15 25 35   15 83.2 76.36 19 30 57   19 103.3 96.45 19 30 60   22 118.4 15 35 30 80
16   20   20   38
18   22   22 70   40
19   24   24   42
20   25   25   23 123.5 16.58 19 30 65
24 42*   28   28   20
11 63.2 56.34 15 30 37   30   30   22
16   32   32   24 70
18   35   35   25
19   16 88.3 81.37 19 30 60   38   28
30		 80
20   20   40   32
24 47*   22   42   35
25   24   20 108.4 101.49 19 30 65   38
28   25   20   40
12 68.2 61.34 15 30 42   28   22   42
16   30   24 70   24 128.5 121.62 19 30 65
18   32   25   20
19   35   28 75   22
20   38   30   24 70
22   17 933 86.39 19 30 60   32   25
24   20   35   28
30		 80
25   22   38   32
28 51*   24   40   35
30   25   42   38
40
32 55   28   21 113.4 106.52 19 30 65   42
13 73.2 66.32 15 30 47   30   20   25 133.6 1266 19 30 65
16   32   22   20
18   35   24 70   22
19   38   25   24 70
20   18 98.3 91.42 19 30 60   28 75   25
22   20   30   28
30		 80
24   22 70   32   32
25   24   35   35
28   25   38   38
30   28   40   40
32 57*   30   42   42
14 78.2 71.34 15 30 52   32   22 118.4 115.5 19 30 65
16   35   20
18   38   22
19   40   24 70
20   42   25
22                 28 80
24                 30
25                 32
28
30
32



Apdarītie zobrati 12B

Ruļļu ķēdei DIN 8187-ISO/R 606 3/4''×7/16''

SOĻI-19,05 MM RULIS- ∅12,07

12B

z de dp d A dm   z de dp d A dm   z de dp d A dm   z de dp d A dm
10 69.8 61.64 19 30 42   14 93.8 85.61 32 35 64   18 117.9 109.71 40 35 80   22 142.0 133.86 38 40 80
20   35   42   40
24   38   19 123.9 115.75 25 35 70   42 90
25   40 67   28 80   45
28* 45*   15 99.8 91.63 19 35 65   30   48
30* 47*   20   32   50
32* 49*   22   35   23 148.1 139.90 25 40 70
11 75.8 67.61 19 35 46   24 70   38   28 80
20   25   40   30 80
24   28   42   32 90
25   30   45   36
28* 49*   32   48   38
30* 51*   35   50   40
32* 53*   38   20 130.0 121.78 25 35 70   42
12 81.80 73.60 19 35 52   40   28 80   45
20   16 105.8 97.65 19 35 65   30   48
22   20   32   50
24   22   35   24 154.1 145.94 25 40 70
25   24 70   38   28 80
28   25   40   30 80
30   28 75   42   32 90
32 56   30   45   35
35 56   32   48   38
13 87.8 79.59 19 35

58

   35   50   40
20   38   21 136.0 127.82 25 40 70   42
22   40   28 80   45
24   17 11.9 103.67 25 35 70   30 80   48
25   28 80   32 90   50
28   30   35   25 160.2 152.00 25 40 70
30   32   38   28 80
32   35   40   30 80
35   38   42   32 90
38 61   40   45   35
14 93.8 85.61 19 35 60   42   48   38
20   18 117.9 109.71 25 35 70   50   40
22   28 80   22 142.0 133.86 25 40 70   42
24 64   30   25 80   45
25   32   28
30		 80   48
28   35
38		   32
35		 80   50



Apdarītie zobrati 16B

Ruļļu ķēdei DIN 8187-ISO/R 606 1''×17,02 mm

SOLIS-25,40 MM RULIS ∅15,875

16B

z de dp d A dm   z de dp d A dm   Z de dp d A dm   Z de dp d A dm
11 101.7 90.14 25 40 61   15 133.7 122.17 30 40 80   18 157.8 146.28 48 40 100   22 190.1 178.48 38 50 100
28   32   50   40 110
30   35 92   19 165.9 154.33 25 45 80   42
32   38   28   45
35   40   30   48
38 65   42   32 100   50
40 67   45   35   23 198.1 186.53 25 50 80
42 67   48   38   28
12 109.7 98.14 25 40 69   50   40   30
28   16 141.8 130.20 25 45 80   42   32 100
30   28   45   35
32   30   48   38
35   32 100   50   40 110
38   35   20 173.9 162.38 25 45 80   42
40   38   28   45
42   40   30   48
13 117 106.12 25 40 70   42   32 100   50
28 78   45   35   24 206.2 194.59 25 50 80
30   48   38   28
32   50   40   30
35   17 149.8 138.22 25 45 80   42   32 100
38   28   45   35
40   30   48   38
42   32 100   50   40 110
45   35   21 182.0 170.43 25 50 80   42
48   38   28   45
50 78   40   30   48
14 125.7 114.15 25 40 70   42   32 100   50
28 80   45   35   25 214.2 202.66 25 50 80
30   48   38   28
32   50   40 110   30
35 84   18 157.8 146.28 25 45 80   42   32 100
38   28   45   35
40   30   48   38
42   32 100   50   40 110
45   35   122 190.1 178.48 25 50 80   42
48   38   28   45
50   40   30   48
15 133.7 122.17 25 40 70   42   32 100   50
28 80   45   35

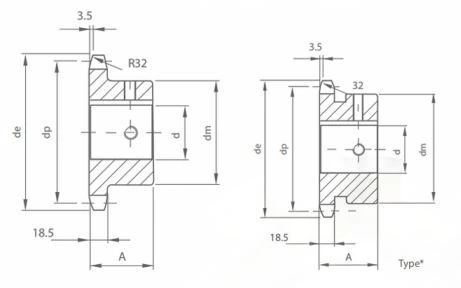

Apdarītie zobrati 20B

Ruļļu ķēdei DIN 8187-ISO/R 606 1''1/4×3/4''

SOĻI-31,75 MM RULIS- ∅19,05

20B

Z de dp d A dm   Z de dp d A dm   Z de dp d A dm
9 106.5 92.84 25 40 63   13 147.5 132.65 32 45 98   17 187.8 172.78 38 50 120
30   35   40
32   38   42
35   40   45
38   42   48
10 117.0 102.74 25 40 70   45   50
30   48   60
32   50   65
35   60   70
38   14 157.6 142.68 32 45 108   18 197.8 182.85 38 50 120
11 127.0 112.68 25 45 77   35   40
28   38   42
30   40   45
32   42   48
35   45   50
38   48   60
40   50   65
42   60   70
45 82   15 167.7 152.72 32 45 118   19 207.9 192.91 38 50 120
50 93*   35   40
60   38   42
12 137.0 122.68 25 45 88   40   45
28   42   48
30   45   50
32   48   60
35   50   65
38   60   70
40   16 177.7 162.75 38 50 120   20 217.9 202.98 38 50 120
42   40   40
45   42   42
48   45   45
50   48   48
60 93   50   50
13 147.5 132.65 25 45 98   60   60
28   65   65
30   70   70

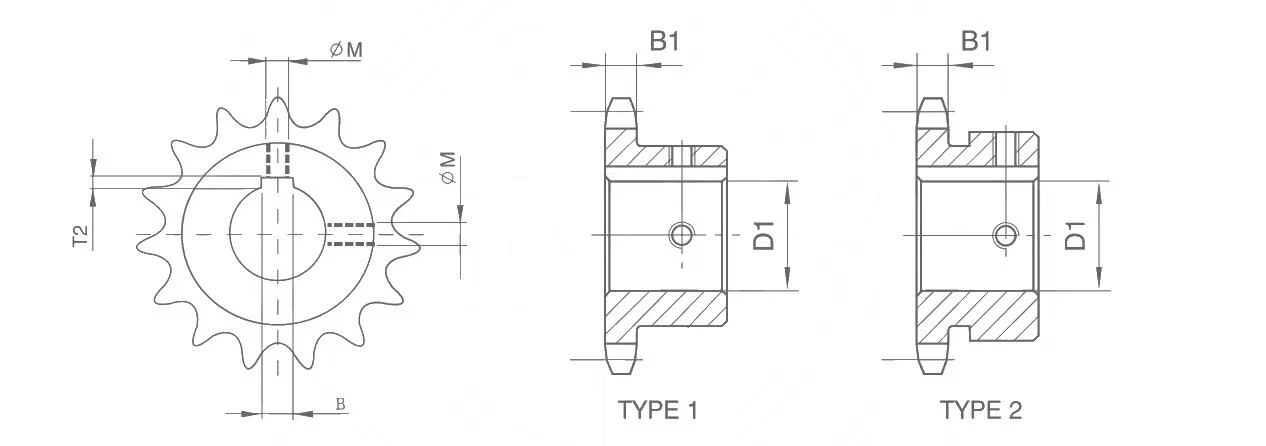

ANSI

product-1266-446

Bore Dia.
D1		 Platums no
atslēgas sprauga B		 Augstums no
atslēgas rieva T2		 Pieskares cauruma diametrs.
⊘M
1/2 H7 1/8 1/16 10-24
5/8 H7 3/16 3/32 1/4
3/4 H7 3/16 3/32 1/4
7/8 H7 3/16 3/32 1/4
1" H7 1/4 1/8 5/16
11/8 H7 1/4 1/8 5/16
13/16 H7 1/4 1/8 5/16
11/4 H7 1/4 1/8 5/16
13/8 H7 5/16 5/32 5/16
17/16 H7 3/8 3/16 3/8
11/2 H7 3/8 3/16 3/8
Bore Dia.
D1		 Platums no
atslēgas sprauga B		 Augstums no
atslēgas rieva T2		 Pieskares cauruma diametrs.
∅M
15/8 H7 3/8 3/16 3/8
13/4 H7 3/8 3/16 3/8
115/16 H7 1/2 1/4 1/2
2" H7 1/2 1/4 1/2
23/16 H7 1/2 1/4 1/2
21/4 H7 1/2 1/4 1/2
27/16 H7 5/8 5/16 5/8
21/2 H7 5/8 5/16 5/8
25/8 H7 5/8 5/16 5/8
23/4 H7 5/8 5/16 5/8
215/16 H7 3/4 3/8 5/8



Pabeigts urbumsZobrati

Atslēgas rievu un regulēšanas skrūvju izmēri

gatavo urbuma ķēdes ratiem

Vārpstas diametrs Atslēgas ceļš
Platums × Dziļums		 Iestatiet skrūvi
1/2~9/16 1/8×1/16 10-24
5/8~ 7/8 3/16×3/32 1/4
15/16~11/4 1/4×1/8 5/16
15/16~13/8 5/16×5/32 5/16
17/16~13/4 3/8×3/16 3/8
113/16~21/4 1/2×1/4 1/2
25/16~23/4 5/8×5/16 5/8
213/16~31/4 3/4×3/8 5/8
35/16~33/4 7/8×7/16 3/4
313/16~41/2 1×1/2 3/4
49/16~51/2 11/4×5/8 3/4
59/16~61/2 11/2×3/4 3/4



Ieteicamā tolerance

gatavo ķēdes ratu urbums.

Mazāks vai vienāds ar 1" +0.001/-0
11/16"-2" +0.002/-0
21/16"-3" +0.003/-0
Lielāks vai vienāds ar 31/16" +0.004/-0



Pabeigts urbumsZobrati 35-1 3/8×3/16''

35-1 Par 3/8''PIĶIS ANSI ĶĒDE

35-1001image

Zobi Nr. Kataloga Nr. O.D. LTB WT Lbs Pabeigts urbums D1
3/8 1/2 5/8 3/4 7/8 1 11/8 13/16 11/4
9
10
11
12
13		 FB35B09H
FB35B10H
FB35B11H
FB35B12H
FB35B13H		 1.26
1.38
1.50
1.63
1.75		 3/4
3/4
3/4
3/4
3/4		 0.10
0.11
0.15
0.18
0.20		 ●
●
●

●
●
●
●
●
●
●
●

●
●
●
14
15
16
17
18		 FB35B14H
FB35B15H
FB35B16H
FB35B17H
FB35B18H		 1.87
1.99
2.11
2.23
2.35		 3/4
3/4
3/4
3/4
3/4		 0.22
0.24
0.29
0.36
0.39		   ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●
●
●
●
●
19
20
21
22
23		 FB35B19H
FB35B20H
FB35B21H
FB35B22H
FB35B23H		 2.47
2.59
2.71
2.83
2.95		 3/4
3/4
7/8
7/8
7/8		 0.44
0.51
0.75
0.76
0.78		   ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		   ●
●
●
●
●
24
25
26
27
28		 FB35B24H
FB35B25H
FB35B26H
FB35B27H
FB35B28H		 3.07
3.19
3.31
3.43
3.55		 7/8
7/8
7/8
7/8
7/8		 0.79
0.80
0.84
0.86
0.88		   ●
●

 		 ●
●
●
●
●		 ●
●
●
●
●

●
●
●		 ●
●
●
●
●

●
●
●

●
●
●

●
●
●
30
32
35
36
40		 FB35B30H
FB35B32H
FB35B35H
FB35B36H
FB35B40H		 3.79
4.03
4.39
4.51
4.99		 7/8
7/8
7/8
7/8
1		 0.96
1.14
1.38
1.41
1.56		     ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
42
45
48
54
60		 FB35B42H
FB35B45H
FB35B48H
FB35B54H
FB35B60H		 5.23
5.59
5.95
6.66
7.38		 1
1
1
1
1		 1.64
1.74
1.86
1.98
2.34		     ●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
70
72
 		 FB35B70
FB35B72
 		 8.58
8.81

 		 1
1


 		 3.14
3.30

 		       ●
●

 		 ●
●

 		 ●
●

 		 ●
●

 		 ●
●

 		 ●
●





Pabeigts urbumsZobrati40-1 1/2×5/16''

40-1 Par 3/8''PIĶIS ANSI ĶĒDE

40-1001001imagetools0

Zobi Nr. Katalogs
Nē.		 O.D. LTB WT Lbs Pabeigts urbums D1
1/2 5/8 3/4 7/8 1 11/8 13/16 11/4 13/8 17/16 11/2
9
10
11
12
13		 FB40B9H
FB40B10H
FB40B11H
FB40B12H
FB40B13H		 1.67
1.84
2.00
2.17
2.33		 7/8
7/8
7/8
7/8
7/8		 0.16
0.24
0.28
0.34
0.45		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●

●
●
●


●
●
14
15
16
17
18		 FB40B14H
FB40B15H
FB40B16H
FB40B17H
FB40B18H		 2.49
2.65
2.81
2.98
3.14		 7/8
7/8
7/8
1
1		 0.51
0.53
0.66
0.88
1.03		 ●
●

 		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●
●
●
●
●



●



●
19
20
21
22
23		 FB40B19H
FB40B20H
FB40B21H
FB40B22H
FB40B23H		 3.30
3.46
3.62
3.78
3.94		 1
1
1
1
1		 1.17
1.33
1.53
1.66
1.92		   ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
24
25
26
27
28		 FB40B24H
FB40B25H
FB40B26H
FB40B27H
FB40B28H		 4.10
4.26
4.42
4.58
4.74		 1
1
1
1
1		 2.10
2.22
2.34
2.42
2.50		   ●
●

 		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●


 		 ●
●
●
●
●
30
32
35
36
40		 FB40B30H
FB40B32H
FB40B35H
FB40B36H
FB40B40H		 5.06
5.38
5.86
6.02
6.65		 1
1
1
1
11/8		 2.70
3.00
3.20
3.39
4.28		     ●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		   ●
●
●
●
●
42
45
48
54
60		 FB40B42H
FB40B45H
FB40B48H
FB40B54
FB40B60		 6.97
7.45
7.93
8.89
9.84		 11/8
11/8
11/8
11/8
11/8		 4.64
5.06
5.66
6.24
7.68		       ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
 		 ●
●
●
●
●		   ●
●
●
●
●
70
72
80
84
96		 FB40B70
FB40B72
FB40B80
FB40B84
FB40B96		 11.43
11.75
13.03
13.66
15.57		 11/4
11/4
11/4
11/4
11/4		 10.80
11.30
13.20
13.84
17.44		       ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		   ●
●
●
●
●



Pabeigts urbumsZobrati 41-1 1/2×1/4''

41-1 Par 3/8''PIĶIS ANSI ĶĒDE

41-1001001imagetools0

Zobi
Nē.		 Katalogs
NĒ.		 O.D. LTB WT
Lbs		 Pabeigts urbums D1
1/2 5/8 3/4 7/8 1 11/8 13/16 11/4 13/8 17/16 11/2
9
10
11
12
13		 FB41B9 FB41B10 FB41B11 FB41B12 FB41B13 1.67
1.84
2.00
2.17
2.33		 7/8
7/8
7/8
7/8
7/8		 0.20
0.25
0.32
0.33
0.43		 ●
●
●
●
●		 ●
●
●
●
●

●
●
●


●
●



●
14
15
16
17
18		 FB41B14
FB41B15
FB41B16
FB41B17
FB41B18		 2.49
2.65
2.81
2.98
3.14		 7/8
7/8
7/8
1
1		 0.48
0.59
0.72
1.00
1.10		 ●
●

 		 ●
●
●
●
●		 ●
●
●
●
●		 ●

 		 ●
●
●
●
●
19
20
21
22
23		 FB41B19 FB41B20 FB41B21 FB41B22 FB41B23 3.30
3.46
3.62
3.78
3.94		 1
1
1
1
1		 1. 21
1.39
1.77
1.92
2.18		   ●
●
●
●
●		 ●
●
●
●
●		   ●
●
●
●
●
24
25
26
27
28		 FB41B24 FB41B25 FB41B26 FB41B27 FB41B28 4.10
4.26
4.42
4.58
4.74		 1
1
1
1
1		 2.24
2.42
2.46
2.52
2.60		   ●
●
●
●
●		 ●
●
●
●
●		   ●
●
●
●
●
30
32
35
36
40		 FB41B30 FB41B32 FB41B35 FB41B36 FB41B40 5.06
5.37
5.86
6.02
6.65		 1
1
1
1
11/16		 2.76
2.92
3.08
3.28
3.82		   ●
●
●
●		 ●
●
●
●
●		   ●
●
●
●
●



●



●



●



●



●
42
45
48
54
60		 FB41B42
FB41B45
FB41B48
FB41B54
FB41B60		 6.97
7.45
7.93
8.89
9.84		 11/16
11/16
11/16
11/16
11/16		 3.88
3.94
4.68
5.44
6.54		     ●
●
●
●
●		   ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●



Pabeigts urbumsZobrati50-1 5/8×3/8''

50-1 Par 5/8''PIĶIS ANSI ĶĒDE

50-1002image2



Zobi Nr. Kataloga Nr. O.D. LTB WT
Lbs		 Pabeigts urbums D1
5/8 3/4 7/8 1 11/8 13/16 11/4 13/8 17/16 11/2 15/8 13/4 15/16
9
10
11
12
13		 FB50B9H
FB50B10H
FB50B11H
FB50B12H
FB50B13H		 2.09
2.30
2.50
2.71
2.91		 1
1
1
1
1		 0.30
0.30
0.60
0.70
0.80		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●
●
●
●
●


●
●


●
●


●
●
14
15
16
17
18		 FB50B14H
FB50B15H
FB50B16H
FB50B17H
FB50B18H		 3.11
3.32
3.52
3.72
3.92		 1
1
1
1
1		 1.00
1.20
1.45
1.60
1.90		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

●
●
●
19
20
21
22
23		 FB50B19H
FB50B20H
FB50B21H
FB50B22H
FB50B23H		 4.12
4.32
4.52
4.72
4.92		 1
1
1
1
1		 2.00
2.10
2.25
2.40
2.50		 ●


 		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●


24
25
26
27
28		 FB50B24H
FB50B25H
FB50B26H
FB50B27H
FB50B28H		 5.12
5.32
5.52
5.72
5.92		 11/4
11/4
11/4
11/4
11/4		 3.00
3.10
3.30
3.46
3.60		   ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
30
32
35
36
40		 FB50B30H
FB50B32H
FB50B35H
FB50B36H
FB50B40H		 6.32
6.72
7.32
7.52
8.32		 11/4
11/4
11/4
11/4
11/4		 3.90
4.70
5.30
5.50
6.20		   ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●
●
●
●
●
42
45
48
54
60		 FB50B42
FB50B45
FB50B48
FB50B54
FB50B60		 8.72
9.31
9.91
11.11
12.30		 11/4
11/4
11/4
11/4
11/4		 6.68
8.00
9.03
10.75
13.50		   ●
●

 		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		   ●
●
●
●
●		 ●
●
●
●
●
70
72
80
84
96		 FB50B70
FB50B72
FB50B80
FB50B84
FB50B96		 14.29
14.68
16.28
17.08
19.48		 13/4
13/4
13/4
13/4
13/4		 17.81
19.13
24.39
25.15
32.57		     ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		   ●
●
●
●
●		 ●
●
●
●
●



Pabeigts urbumsZobrati 60-1 3/4×1/2''

60-1 Par 3/4''PIĶIS ANSI ĶĒDE

60-1001image3

Zobi Nr Katalogs
Nē.		 O.D LTB WT
Lbs		 Pabeigts urbums D1
3/4 7/8 1 11/8 13/16 11/14 13/8 17/16 11/2 15/8 13/4 15/6 2 23/16 27/16
9
10
11
12
13		 FB60B9H
FB60B10H
FB60B11H
FB60B12H
FB60B13H		 2.51
2.76
3.00
3.25
3.49		 11/4
11/4
11/4
11/4
11/4		 0.60
0.70
0.9
1.3
1.3		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●



●


●
●



●
14
15
16
17
18		 FB60B14H
FB60B15H
FB60B16H
FB60B17H
FB60B18H		 3.74
3.98
4.22
4.46
4.70		 11/4
11/4
11/4
11/4
11/4		 1.60
1.70
2.10
2.40
2.60		 ●
●
●
 		 ●
●
●
 		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●

●
●
●
19
20
21
22
23		 FB60B19H
FB60B20H
FB60B21H
FB60B22H
FB60B23H		 4.95
5.19
5.43
5.67
5.91		 11/4
11/4
11/4
11/4
11/4		 3.40
3.90
4.40
4.70
5.00		     ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
24
25
26
27
28		 FB60B24H
FB60B25H
FB60B26H
FB60B27H
FB60B28H		 6.15
6.39
6.63
6.87
7.11		 11/4
11/4
11/4
11/4
11/4		 5.30
5.40
5.80
6.30
6.40		     ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
30
32
35
36
40		 FB60B30H
FB60B32H
FB60B35H
FB60B36H
FB60B40		 7.59
8.07
8.78
9.02
9.98		 11/4
11/4
11/4
11/4
11/4		 7.10
7.80
8.80
9.20
11.20		     ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●



●
●


●
●
42
45
48
54
60		 FB60B42
FB60B45
FB60B48
FB60B54
FB60B60		 10.46
11.18
11.89
13.33
14.76		 11/4
11/4
11/4
13/4
13/4		 12.40
13.80
15.40
21.00
25.00		     ●
●
●
●		 ●
●
●
●		 ●
●
●
●		 ●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
70
72
80
84
96		 FB60B70
FB60B72
FB60B80
FB60B84
FB60B96		 17.15
17.63
19.54
20.49
23.36		 13/4
2
2
2
21/4		 31.40
33.50
41.20
45.80
62.30		             ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●



Pabeigts urbumsZobrati80-1 1''×5/8''

80-1 par 1''PIĶIS ANSI ĶĒDE

80-1image4

Zobi Nr. Kataloga Nr. O.D. LTB WT
Lbs		 Pabeigts urbums D1
5/8 3/4 7/8 1 11/8 13/16 11/4 13/8 17/16 11/2 15/8 13/4 15/16
9
10
11
12
13		 FB50B9H
FB50B10H
FB50B11H
FB50B12H
FB50B13H		 2.09
2.30
2.50
2.71
2.91		 1
1
1
1
1		 0.30
0.30
0.60
0.70
0.80		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●
●
●
●
●


●
●


●
●


●
●
14
15
16
17
18		 FB50B14H
FB50B15H
FB50B16H
FB50B17H
FB50B18H		 3.11
3.32
3.52
3.72
3.92		 1
1
1
1
1		 1.00
1.20
1.45
1.60
1.90		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

●
●
●
19
20
21
22
23		 FB50B19H
FB50B20H
FB50B21H
FB50B22H
FB50B23H		 4.12
4.32
4.52
4.72
4.92		 1
1
1
1
1		 2.00
2.10
2.25
2.40
2.50		 ●


 		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●


24
25
26
27
28		 FB50B24H
FB50B25H
FB50B26H
FB50B27H
FB50B28H		 5.12
5.32
5.52
5.72
5.92		 11/4
11/4
11/4
11/4
11/4		 3.00
3.10
3.30
3.46
3.60		   ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
30
32
35
36
40		 FB50B30H
FB50B32H
FB50B35H
FB50B36H
FB50B40H		 6.32
6.72
7.32
7.52
8.32		 11/4
11/4
11/4
11/4
11/4		 3.90
4.70
5.30
5.50
6.20		   ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●
●
●
●
●
42
45
48
54
60		 FB50B42
FB50B45
FB50B48
FB50B54
FB50B60		 8.72
9.31
9.91
11.11
12.30		 11/4
11/4
11/4
11/4
11/4		 6.68
8.00
9.03
10.75
13.50		   ●
●

 		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		   ●
●
●
●
●		 ●
●
●
●
●
70
72
80
84
96		 FB50B70
FB50B72
FB50B80
FB50B84
FB50B96		 14.29
14.68
16.28
17.08
19.48		 13/4
13/4
13/4
13/4
13/4		 17.81
19.13
24.39
25.15
32.57		     ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		   ●
●
●
●
●		 ●
●
●
●
●



Pabeigts urbumsZobrati100-1

1 1/4''×3/4'' 100-1 par 1 1/4''PIĶIS ANSI ĶĒDE

100-1image5001

Zobi Nr. Kataloga Nr. O.D. LTB WT Lbs Pabeigts urbums D1
1 13/16 11/4 17/16 115/16 2 23/16 27/16 215/16
8
9
10
11
12		 FB100B8H
FB100B9H
FB100B10H
FB100B11H
FB100B12H		 3.77
4.18
4.60
5.01
5.42		 17/8
17/8
17/8
17/8
17/8		 2.80
2.00
3.90
4.90
6.00		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
●
●
●
●


●
●


●
●


●
●
13
14
15
16
17		 FB100B13H
FB100B14H
FB100B15H
FB100B16H
FB100B17H		 5.82
6.23
6.63
7.03
7.44		 15/8
15/8
13/4
13/4
13/4		 6.20
6.60
8.40
9.00
9.90		 ●


 		 ●


 		 ●
●
●
 		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●


●
●


●
●
18
19
20
21
22		 FB100B18H
FB100B19H
FB100B20H
FB100B21H
FB100B22H		 7.84
8.24
8.64
9.04
9.44		 13/4
2
2
2
2		 10.60
12.10
13.20
14.30
15.10		       ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●		 ●
●
●
●
●
23
24
25		 FB100B23H
FB100B24H
FB100B25H		 9.84
10.25
10.65		 2
2
2		 16.10
18.10
18.40		       ●
●
●		 ●
●
●		 ●
●
●		 ●
●
●		 ●
●
●		 ●
●
●



Populāri tagi: gatavo urbuma ķēdes rati, Ķīnas gatavo urbuma ķēdes ratu ražotāji, piegādātāji, rūpnīca

Jums varētu patikt arī

STL dubultie zobrati
STL dubultie zobrati
Spriegošanas zobrati
Spriegošanas zobrati
Noliktavā urbuma zobrati
Noliktavā urbuma zobrati
BTL dubultie zobrati
BTL dubultie zobrati
Liesmas griešanas ķēdes rati
Liesmas griešanas ķēdes rati
FB dubultie zobrati
FB dubultie zobrati
Nosūtīt pieprasījumu
